R901506486
$8,423.87 USD
- BOSCH REXROTH
- Material:R901506486
- Model:4WRLE10W6-100LJ-4X/MPT/24F1
Quantity in stock: 5
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

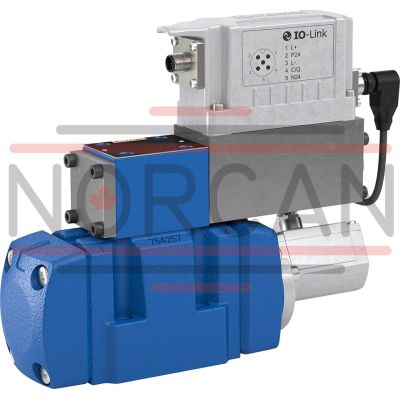

The Bosch Rexroth 4WRLE10W6-100LJ-4X/MPT/24F1 (R901506486) is a sophisticated industrial hydraulic valve designed for high-performance applications, offering precise control over the direction of oil flow in accordance with its hydraulic symbol W. This spool valve is pilot-operated with a linear characteristic curve and has an internal piston position feedback for enhanced accuracy. It features internal pilot oil supply and return, ensuring reliable operation. The valve is engineered to withstand a maximum pressure with an electrical connection that complies with Connector pole PE according to EN standards. It falls under Productgroup ID and has multiple ports for versatile connectivity. The integrated electronics facilitate electrical actuation, which conforms to CE electromagnetic compatibility, EU RoHS Directive, and REACH Regulation EC requirements. With subplate mounting as its type of connection, the 4WRLE10W6-100LJ-4X/MPT/24F1 adheres to NFPA T.. R D SizeCETOP D and ISO nominal flow connection diagrams, supporting a VDC supply voltage. Its design incorporates a number of switching positions and it has a weight that ensures stability during operation. The seals are made from NBR (nitrile butadiene rubber), offering robustness against various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. Connectivity options include an analog command value ranging from mA for precise control inputs. This Bosch Rexroth valve is an essential component for systems requiring dependable hydraulic flow direction control with high accuracy and compliance with international standards.
The Bosch Rexroth 4WRLE10W6-100LJ-4X/MPT/24F1 (R901506486) is a sophisticated industrial hydraulic valve designed for high-performance applications, offering precise control over the direction of oil flow in accordance with its hydraulic symbol W. This spool valve is pilot-operated with a linear characteristic curve and has an internal piston position feedback for enhanced accuracy. It features internal pilot oil supply and return, ensuring reliable operation. The valve is engineered to withstand a maximum pressure with an electrical connection that complies with Connector pole PE according to EN standards. It falls under Productgroup ID and has multiple ports for versatile connectivity. The integrated electronics facilitate electrical actuation, which conforms to CE electromagnetic compatibility, EU RoHS Directive, and REACH Regulation EC requirements. With subplate mounting as its type of connection, the 4WRLE10W6-100LJ-4X/MPT/24F1 adheres to NFPA T.. R D SizeCETOP D and ISO nominal flow connection diagrams, supporting a VDC supply voltage. Its design incorporates a number of switching positions and it has a weight that ensures stability during operation. The seals are made from NBR (nitrile butadiene rubber), offering robustness against various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. Connectivity options include an analog command value ranging from mA for precise control inputs. This Bosch Rexroth valve is an essential component for systems requiring dependable hydraulic flow direction control with high accuracy and compliance with international standards.
Size 10, symbol W6, electrical with integrated electronics, 24 V DC
Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback
Unpacked Weight: 9.120 kg
Internal pilot oil supply, internal pilot oil return |
Spool valve |
Pilot-operated |
Linear |
Digital interface, IO-Link for I4.0 |
Maximum flow 4700 l/min |
Size 10 … 35 |
Component series 4X |
Maximum operating pressure 350 bar |
Rated flow 60 … 1500 l/min |
Data Sheet | Download Data Sheet |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Spool symbol | Symbol W6 |
Max. pressure | 350 |
Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
Productgroup ID | 9,10,11,12,13,14 |
Number of ports | 4 |
Type of actuation | Electrical with integrated electronics |
Conformity description | CE – electromagnetic compatibility 2014/30/EU RoHS Directive 2011/65/EU REACH Regulation (EC) no. 1907/2006 |
Size | 10 |
Electrical connector | Connector 7-pole (6 + PE) |
Max. flow | 300 |
Type of connection | Subplate mounting |
Connection diagram NFPA | NFPA T3.5.1 R2-2002 D05 |
Size_CETOP | D05 |
Nominal flow | 100 |
Connection diagram | ISO 4401-05-05-0-05 |
Supply voltage | 24 VDC |
Number of switching positions | 3 |
Weight | 9.120 |
Seals | NBR |
Connectivity | Analog, command value 4 … 20 mA |
Hydraulic fluid | HL,HLP,HFC (Fuchs: Hydrotherm 46M, Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046) |
Conformity | CE,RoHS |
Conformity | CE |
