BOSCH REXROTH
R901456333
$325.15 USD
- BOSCH REXROTH
- Material:R901456333
- Model:HM20-2X/250-H-K35-N
Quantity in stock: 0

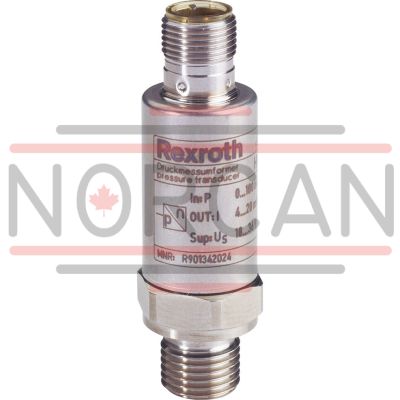

The Bosch Rexroth HM 20-2X/250-H-K35-N (R901456333) is a high-precision pressure transducer designed to provide reliable and accurate pressure measurements in a variety of industrial applications. This model features an analog output of 0.5 to 4.5 V, making it compatible with numerous control systems and devices. The unit is capable of measuring pressure ranges up to 250 bar, ensuring versatility across different hydraulic systems. Equipped with a robust thin-film measuring cell, the HM 20-2X/250-H-K35-N ensures excellent measurement accuracy of less than ±0.3% FS (Full Scale). The device's components that come into contact with media are constructed from stainless steel, enhancing its durability and suitability for use with various hydraulic fluids such as HL, HLP, HFC, and Nitrogen up to 350 bar. This model boasts rapid signal rise times of less than 2 ms, enabling dynamic pressure control in fast-changing environments. It also features a G1/4 hydraulic connection and includes a throttle element in the pressure tube for improved response times. Safety is paramount with this transducer as it showcases superior overload protection and bursting behavior, ensuring operational security even under extreme conditions. The electrical connection is facilitated through a connector pole M12x1 A-coded in accordance with EN standards. The Bosch Rexroth HM 20-2X/250-H-K35-N does not have a display but offers a supply voltage requirement of 8 to 30 VDC and weighs approximately 0.4 kg. Its seals are made from NBR material to maintain integrity under varying conditions. For compliance assurance, the transducer meets CE electromagnetic compatibility requirements under EU legislation, RoHS Directive EU standards for hazardous substances, UL recognition for safety standards in North America, and UKCA marking for conformity in the United Kingdom. Additionally, it holds marine approval DNVGL for all variants with current output which speaks to its reliability in marine applications where rigorous standards are observed.
Pressure transducer with analog output 0.1 … 10 V, pressure range 0 ... 250 bar, connector 4-pole M12x1 A-coded, throttle element
Short signal rise time
Unpacked Weight: 0.062 kg
Pressure transducers are used to monitor and control hydraulic pressures. They transform the measured pressure into a normalized, linear, electrical output signal.
Thin film measuring cell |
Hydraulic connection G1/4 |
Throttle element in the pressure tube |
Analog output 0.1 … 10 V |
Throttle element in the pressure channel |
Connector 4-pole, M12x1, A-coded |
Component series 2X |
Data Sheet | Download Data Sheet |
3D CAD | Download 3D CAD |
3D CAD | Download 3D CAD |
Max. pressure | 250 |
Electrical connection description | Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101 |
Productgroup ID | 9,10,11,12,13,14 |
Conformity description | CE – electromagnetic compatibility 2014/30/EU RoHS Directive 2011/65/EU |
Display | no |
Connection diagram | Male thread G1/4 |
Supply voltage | 24 VDC |
Weight | 0.062 |
Seals | NBR |
Output signal | 0.1 … 10 V |
Hydraulic fluid | HL,HLP,HFC,Nitrogen (up to 300 bar) |
Conformity | CE,UL,UKCA,RoHS |
01 |
02 |
03 |
04 |
05 |
06 |
||||
HM20 |
– |
2X |
/ |
– |
– |
K35 |
01 |
Pressure transducer |
HM20 |
02 |
Component series 20 ... 29 (20 ... 29: unchanged installation dimensions and pin assignments) |
2X |
03 |
10 bar |
10 |
50 bar |
50 |
|
100 bar |
100 |
|
160 bar |
160 |
|
250 bar |
250 |
|
315 bar |
315 |
|
400 bar |
400 |
|
630 bar1) |
630 |
|
04 |
Current output 4 to 20 mA 2) |
C |
Voltage output 0.1 to 10 V |
H |
|
05 |
Connector, 4-pole, M12x1 |
K35 |
06 |
Without throttle element |
ohne Bez. |
Throttle element (corresponds to 0.3 mm nozzle) 3), 4) |
N |
1) | Only available with throttle element |
2) | With marine approval DNV-GL |
3) | Only available for versions with 250, 315, 400 and 630 bar |
4) | Highly dynamic effects in like pressure peaks or cavitation in hydraulic systems may damage the measuring cell. For these applications, devices with integrated throttle element [version "-N"] in the process interface have to be used. |
Replacement seal ring |
|
Designation |
Material number |
Seal ring NBR |
R900012467 |
Cable sets or mating connectors are not included in the scope of delivery; please order separately.
General
Component series |
2X |
Eingangsgrößen
Operating voltage 1) |
US |
16 … 36 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Residual ripple |
UPP |
2.5 V (40 to 400 Hz) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum current consumption 2) |
Imax |
mA |
≤ 12 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Isolation resistance |
R |
MΩ |
> 100 (500 VDC) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pressure measuring ranges |
pN |
bar |
10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 | 10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 | 10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 | 10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 | 10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 | 10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 | 10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 | 10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 |
1) | With cULus: max. of 30 VDC is admissible |
2) | With voltage output |
Output parameters
Output signal |
admissible load |
Current |
ISig |
4 … 20 mA, RA = (US - 8.5 V) / 0.0215 A with RA in Ω and US in V | |
Voltage |
USig |
0.1 … 10 V, RA > 2 kΩ | |||
Setting time (10 ... 90 %) |
t |
ms |
< 1 | ||
Accuracy class 1) |
% |
< 0.5 | |||
Temperature coefficient |
Zero point and range |
< 0.1 % / 10 K | |||
Hysteresis 2) |
% |
< 0.15 | |||
Long-term drift (1 year) under reference conditions |
% |
< 0.1 |
1) | Related to the complete measurement range, including non-linearity, hysteresis, zero point and end value deviation (corresponds to the measuring deviation according to IEC 61298-2) |
2) | Related to the temperature range -20 … 80 °C |
Ambient conditions
Ambient temperature range |
ϑ |
°C |
-40 … +85 |
Storage temperature range |
ϑ |
°C |
-40 … +100 |
Hydraulic fluid temperature range |
ϑ |
°C |
-40 … +90 |
Other characteristics
Pressure port 1) |
G1/4 according to DIN 3852 form E, seal ring according to DIN 3869-14 | |||
Material |
Throttle |
1.4305 | ||
Housing |
V4A (1.4404), PEI, HNB | |||
in contact with the medium |
1.4542, 1.4305, NBR | |||
Pressure media 2) |
HL, HLP, HFC, nitrogen, others upon request | |||
Tightening torque range |
Measurement ranges > 400 bar |
MA |
Nm |
20 … 25 |
Measurement ranges ≥ 400 bar |
MA |
Nm |
25 … 30 | |
Anschlussart |
4-pole M12 connector at the housing | |||
Type of protection according to EN 60529 |
IP65 / IP67 with mating connector correctly mounted and locked | |||
Weight |
m |
kg |
0.06 | |
Life cycle |
60 million load cycles or 60000 h | |||
Admissible shock and vibration loads according to DIN EN 60068-2-27 |
15 g / 11 ms / 3 axes | |||
Sine test according to DIN EN 60068-2-6:2008 |
10 ... 2000 Hz / maximum 10 g / 10 cycles / 3 axes | |||
Noise test according to DIN EN 60068-2-64 |
20 … 2000 Hz / 14 g RMS / 42 g peak / 24 h / 3 axes | |||
Electro-magnetic compatibility |
EMC EN 61000-4-2 ESD |
4 kV CD / 8 kV AD with BWK B | ||
EMC EN 61000-4-3 HF radiated |
10 V / m (80 ... 2700 MHz) with BWK A | |||
EMC EN 61000-4-4 Burst |
2 kV with BWK B | |||
EMC EN 61000-4-5 Surge |
1 kV / 42 Ω with BWK B | |||
EMC EN 61000-4-6 HF line-bound |
10 Veff (150 kHz ... 80 MHz) with BWK A | |||
EMC EN 61000-4-8 Magnetic field 50/60 Hz |
100 A/m with BWK A | |||
EMC EN 61000-4-9 Magnetic field pulsed |
1000 A/m with BWK A | |||
EMC EN 55016-2-1 Interference voltage |
0.15 ... 30 MHz, class A, EN 55022 | |||
EMC EN 55016-2-3 Radio interference field strength |
30 ... 1000 MHz, class B, EN 55022 | |||
Conformity |
CE according to the EMC directive | |||
Further tests |
cULus-listed |
1) | Thorough bleeding must be ensured |
2) | Maximum of 300 bar is admissible |
For applications outside these parameters, please consult us!
Voltage |
Current (two-wire system) |
Values for US, RA and USig, see Technical data |
Values for US, RA and USig, see Technical data |
Dimensions in mm
1 |
Pressure port G1/4 male thread |
2 |
Seal ring |
3 |
4-pole M12 connector |
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line, cable shielded
4P M12 +
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line, cable shielded
4P M12 +
For sensors and valves with connector “K24”, “K35” and “K72” Cable sets M12, 4-pole, line cross-section 0.34 mm2Data sheet
