BOSCH REXROTH
R900057455
$45.45 USD
- BOSCH REXROTH
- Material:R900057455
Quantity in stock: 26
The Bosch Rexroth PLUG-IN CONNECTOR 3P RZ55L 24-2 (R900057455) is a specialized electrical component designed for secure and reliable connections in industrial valve applications. This plug-in connector is engineered to facilitate the electrical connection of valves equipped with connector type K, adhering to EN and ISO standards. It features a 3-pole PE (Protective Earth) configuration within its robust design, ensuring compatibility with valves that operate with one or two solenoids for individual connection. The product's OEM accessory status underscores its suitability for direct use with original equipment manufacturer components, guaranteeing an optimal fit and performance as intended by the system's design. The large cubic connector form factor of the R900057455 provides a substantial contact surface for improved conductivity and stability in electrical transmissions. Additionally, this Bosch Rexroth plug-in connector is built to accommodate a supply voltage of VDC, demonstrating its versatility across various power systems within industrial settings. Its precise construction ensures that it can withstand the demanding conditions typical of such environments while maintaining consistent operation. The weight and dimensions of the R900057455 are calibrated to complement the associated valves without adding excessive bulk or hindering installation processes. As part of Bosch Rexroth's product group ID Electrical connector, this item exemplifies the company's commitment to producing high-quality connectors that meet strict industry standards for performance and reliability. In summary, the Bosch Rexroth PLUG-IN CONNECTOR 3P RZ55L 24-2 (R900057455) represents a key accessory in industrial valve applications where secure and efficient electrical connections are paramount. Its specific design tailored for valves with connector K ensures seamless integration and operation within complex hydraulic or pneumatic systems.
Mating connector
For valves with connector K4. OEM accessories. Industrial use.
Unpacked Weight: 0.052 kg
Mating connectors for valves with one or two solenoids (individual connection) |
For valves with connector "K4" according to EN 175301-803 and ISO 4400, 2-pole + PE, "large cubic connector" |
Data Sheet | Download Data Sheet |
Manual | Download Manual |
Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
Productgroup ID | 9,10,11,12,13,14 |
Electrical connector | Connector 3-pole (2 + PE) |
Supply voltage | 24 VDC |
Weight | 0.052 |
For applications outside these parameters, please consult us!
Short designation |
RZ55L | ||
Design |
A | ||
Ambient temperature |
with indicator light/rectifier |
°C |
-20 … +60 |
Protection class according to DIN EN 60529 |
IP65 (with mating connector mounted and locked) | ||
Indicator light |
LED yellow | ||
Number of poles |
2 + PE | ||
Terminal area for lines with external diameter |
mm |
5 … 10 | |
Wire cross-section, max. 1) |
mm² |
1.5 | |
Anschlussart |
Screw connection | ||
Standard |
EN 175301-803 | ||
Derating, max. |
1,5 A |
25 °C | |
1 A |
60 °C |
1) | 2.5 mm2 with special wire end ferrule clamp (e. g. Knipex 975314 or Weidmüller PZ 6/5) |
With indicator light and rectifier

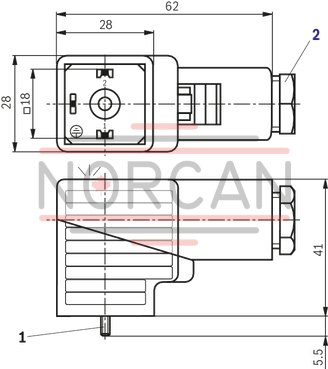

Dimensions in mm
Dimensions in mm
1 |
Mounting screw M3 (not detachable), tightening torque MA = 0.5 Nm |
2 |
Fitting M16 x 1.5 / NPT 1/2“ (see table) |
