BOSCH REXROTH
R900021267


$54.20 USD
  • BOSCH REXROTH
  • Material:R900021267

Quantity in stock: 33

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth PLUG-IN CONNECTOR 7P Z31 BF6-3PG11KSPEZ (R900021267) is a specialized electrical component designed for secure and reliable connections in industrial applications. This OEM accessory is specifically tailored for valves with round connectors, ensuring compatibility and efficient performance. It features a 7-pole PE (Protective Earth) connection that adheres to the EN standards, indicating its compliance with European norms for electrical connectors. The product's design includes a mating connector that facilitates easy installation and maintenance, making it a convenient choice for various industrial settings. The round connector PE is also in conformity with DIN standards, which speaks to its quality and adherence to established guidelines for electrical components. With its supply voltage rated at VDC, this plug-in connector is equipped to handle the necessary power requirements of compatible systems. Its robust construction is reflected in its weight specification, which contributes to the overall durability of the product. This Bosch Rexroth plug-in connector is part of a product group identified by specific ID codes that help users ensure they are selecting the correct component for their needs. Its pole configuration includes both PE as well as additional poles, offering versatility and broad compatibility with VG standard components. In summary, the Bosch Rexroth PLUG-IN CONNECTOR 7P Z31 BF6-3PG11KSPEZ (R900021267) represents a high-quality electrical connection solution designed for industrial use with valves featuring round connectors. Its compliance with EN and DIN standards ensures reliability and safety in demanding environments.


Mating connector, connector 7-pole (6 + PE) EN 175301-804

For valves with round connector. OEM accessories. Industrial use.

Unpacked Weight: 0.050 kg
Electrical connection descriptionConnector 7-pole (6 + PE) according to EN 175201-804
Productgroup ID9,10,11,12,13,14
Conformity descriptionDIN 43563
Electrical connectorRound connector 7+PE
Supply voltage24 VDC
Weight0.050
ConformityDIN 43563

Mating connector

Short designation

7PZ31...K 7PZ31...M

Design

no code (see unit dimensions)

Ambient temperature

°C

-40 … +100

Protection class according to DIN EN 60529

IP 67 with mating connector mounted and fitted IP65 with mating connector mounted and fitted

Number of poles

6 + PE

Terminal area for line diameter

mm

6.5 … 11 9 … 12.5

Wire cross-section, max.

0.5 ... 1.5 mm2

Anschlussart

Soldered joint

Standard

EN 175201-804
DIN 43563

Certification/conformity

DIN 43563

Derating

max.

6 A with 0.5 mm2

°C

70 -

9 A with 1.5 mm2

°C

70 -

For applications outside these parameters, please consult us!

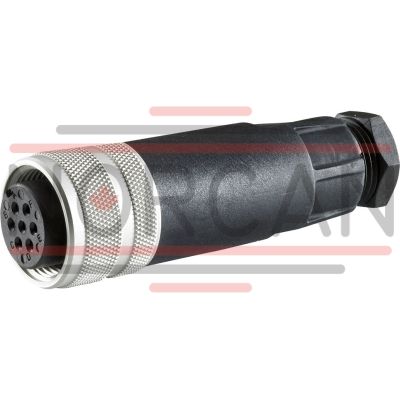

6-pole + PE, plastic version

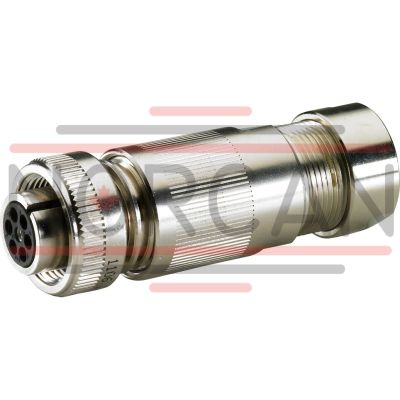

6-pole + PE, metal version

technical illustration-R900021267-Mating connector, connector 7-pole (6 + PE) EN 175301-804

6-pole + PE, plastic version, 7PZ31...K

Dimensions in mm

technical illustration-R900021267-Mating connector, connector 7-pole (6 + PE) EN 175301-804

6-pole + PE, metal version, 7PZ31...M

Dimensions in mm

technical illustration-R900021267-Mating connector, connector 7-pole (6 + PE) EN 175301-804

1

Coupling nut; tightening torque MA = 1 … 1.5 Nm
