3842523561
$4.64 USD
- BOSCH REXROTH
- Material:3842523561
Quantity in stock: 62
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth GUSSET 45X45 SET (3842523561) is a robust and versatile bracket set designed for facilitating rapid and precise assemblies. This set includes brackets with centering lugs that ensure a secure fit and protection against rotation, providing a reliable connection between profiles. These lugs can also be intentionally removed to allow for alternative assembly configurations, such as mounting on plates or perpendicular to the profile slot. The GUSSET 45X45 SET stands out with its designLINE version, featuring a special silver paint finish in RAL 9006, which offers an enhanced visual appeal for applications where design aesthetics are important. This high-quality finish adds an extra layer of sophistication to the product, making it suitable for visible installations where appearance matters. Additionally, the sliding block of the bracket is deliberately offset to allow off-center positioning of the 45/45 bracket, offering greater flexibility in assembly. To maintain cleanliness and protect against dirt accumulation, cover caps are available in signal gray (RAL 7004) and black ESD (RAL 9005). These caps not only contribute to the overall durability of the connection but also complement the design aspect of the setup. One significant advantage of this product is that it requires no profile finishing, streamlining the installation process and saving time during assembly. The Bosch Rexroth GUSSET 45X45 SET is an ideal solution for constructing sturdy frames and structures in various applications without compromising on either strength or aesthetics.
The Bosch Rexroth GUSSET 45X45 SET (3842523561) is a robust and versatile bracket set designed for facilitating rapid and precise assemblies. This set includes brackets with centering lugs that ensure a secure fit and protection against rotation, providing a reliable connection between profiles. These lugs can also be intentionally removed to allow for alternative assembly configurations, such as mounting on plates or perpendicular to the profile slot. The GUSSET 45X45 SET stands out with its designLINE version, featuring a special silver paint finish in RAL 9006, which offers an enhanced visual appeal for applications where design aesthetics are important. This high-quality finish adds an extra layer of sophistication to the product, making it suitable for visible installations where appearance matters. Additionally, the sliding block of the bracket is deliberately offset to allow off-center positioning of the 45/45 bracket, offering greater flexibility in assembly. To maintain cleanliness and protect against dirt accumulation, cover caps are available in signal gray (RAL 7004) and black ESD (RAL 9005). These caps not only contribute to the overall durability of the connection but also complement the design aspect of the setup. One significant advantage of this product is that it requires no profile finishing, streamlining the installation process and saving time during assembly. The Bosch Rexroth GUSSET 45X45 SET is an ideal solution for constructing sturdy frames and structures in various applications without compromising on either strength or aesthetics.

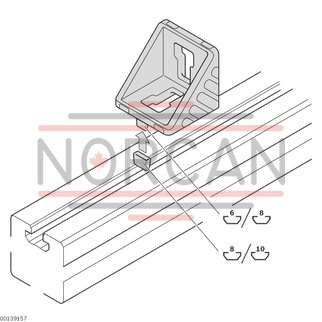

Brackets with centering lugs for rapid, precise assembly with protection against turning |

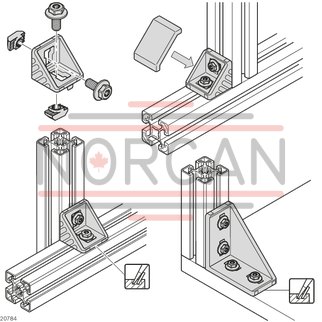

Centering lugs can be easily broken off for assembly on plates or at right angles to the slot |
Sliding block offset for off-center positioning of the 45/45 bracket |
Cover cap to protect from dirt, available in signal gray (RAL 7004) and black ESD (RAL 9005) |
Profile finishing: not required |
Profile finishing: not required |

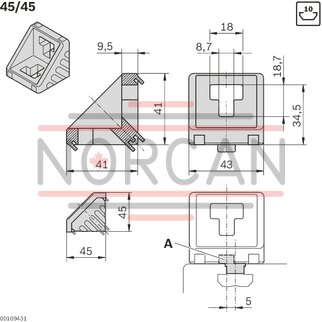

Data Sheet | Download Data Sheet |
3D CAD | Download 3D CAD |
Bending moment 1 | 60 |
Fastening material included | yes |
Productgroup ID | 2 |
ESD | yes |
Dimensions | 45x45 |
Material | Diecast aluminum, vibratory ground |
Bending moment 2 | 160 |
Weight | 0.107 |
Scope of delivery | incl. fastening material (FS),Bracket (standard) |
Recommended accessories | Sliding block, offset (3842523593),Cover cap for bracket 45x45, signal gray (3842548862) ,Cover cap for bracket 45x45, black (3842548863) |
Material information | Bracket: Diecast aluminum, vibratory ground,Fastening material: Steel, galvanized |
Fastening material | 2x T-bolt M8x25,2x flange nut M8 |
Profile slot | 10 |
Groove |
ESD |
Material entry |
|
|
|
|
Fmax |
Mmax |
Mmax |
||||
N |
Nm |
Nm |
||||
Bracket | 10 |
|
Bracket: Diecast aluminum, vibratory ground Fastening material: steel; galvanized |
3000 | 60 | 160 |
10 |
|
Bracket designLINE: Diecast aluminum; vibratory ground, painted (RAL 9006) Fastening material: steel; galvanized |
3000 | 60 | 160 | |
10 |
|
Bracket: Diecast aluminum, vibratory ground | 3000 | 60 | 160 | |
Cover cap for bracket | PP | |||||
|
PP | |||||
Bracket 45x45 | 10 | Sliding block, offset: PA; black |
45/45 bracket with cover cap
Recommended accessories | ||
Sliding block, offset | ||
Cover cap for bracket 45/45, signal gray | ||
Cover cap for bracket 45/45, black |
FS7 |
|
