BOSCH REXROTH
R901507310

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

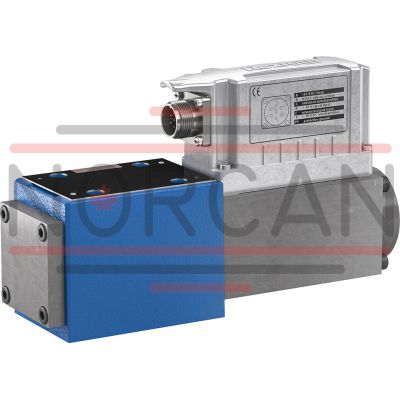

The Bosch Rexroth 4WRPEH10C3B100L-3X/M/24F1 (R901507310) is a high-performance industrial hydraulic valve designed for reliable and quick control of oil flow direction, in accordance with its hydraulic symbol C. It is notable for its integrated electronics, which contribute to its precise operation. The valve features a spool valve that is direct-actuated with linear flow characteristics, ensuring accurate performance. This model has been engineered with internal piston position feedback to achieve high accuracy. The 4WRPEH10C3B100L-3X/M/24F1 valve can handle a maximum pressure and operates with an electrical connection described by the connector pole PE according to EN. It belongs to a product group identifiable by its specific ID number and includes multiple ports for versatile applications. Actuation is electrical, leveraging the integrated electronics that simplify the system's complexity. This model conforms to CE standards, including electromagnetic compatibility as per EU regulations, ensuring it meets stringent quality and safety criteria. It is designed for subplate mounting with a size designation of 10 and employs an electrical connector type pole PE. The nominal flow of the valve indicates its capacity to handle fluid dynamics efficiently. The supply voltage required for operation is VDC, and it offers a certain number of switching positions that facilitate different operational states or functions. Its weight is specified along with the seal material NBR, which provides durability against various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Connectivity options include analog command value inputs (V), allowing for precise control adjustments based on user or automated system requirements. Overall, the Bosch Rexroth 4WRPEH10C3B100L-3X/M/24F1 hydraulic valve stands out for its advanced features that cater to demanding industrial applications requiring meticulous flow control.
